가스감지기

  제품사양 GTQ-BS03 사양   Model GTQ-BS03 Operating voltage DC20V~28V Measuring type Diffusion type Accuracy ±3% / Full scale Operation mode display 3-LED (Power: GREEN, Alarm: RED, Fault: YELLOW) Measuring value display LCD display (Built in back light 2color) Output signal Analog : 4-20mA, RS-485 Power BUS (Option) Material Aluminum alloy Conduit connection NPT3/4 (adapter for other size) Mounting type 2" Pole mount, Wall mount, Option Operating temperature LEL: -40~70℃ Toxic:-20~50℃ Operating humidity ≤95%.RH (non-condensing) Dimensions 130mm x 154mm x 95mm about 1.2kg Parameter control Non intrusive control with a IR Remote (calibration, maintenance) 가연성   구분 내용 Measuring gas Combustible Measuring method Catalytic or IR Measuring range 0~100% LEL Response time T90≤15S O2 & 독성   구분 내용 Measuring gas O2 Toxic Measuring method Electrochemical Measuring range 0-25%VOL Refer to Toxic Gas Measuring Range Response time T90≤30S VOCs   구분 내용 Measuring gas VOCs Measuring method PID or Semiconductor Measuring range Refer to Toxic Gas Measuring Range Response time T90≤30S

가스감지기

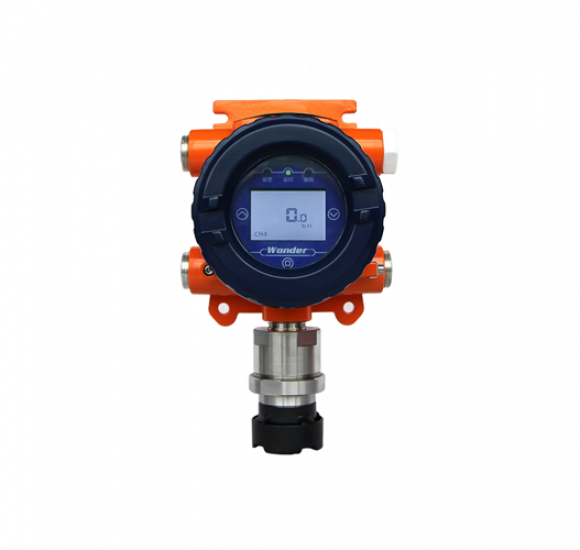

  제품사양 GTQ-WD2200 사양   Model GTQ-WD2200 Operating voltage DC20V~28V Measuring type Diffusion type Accuracy ±3% / Full scale Operation mode display 3-LED (Power: GREEN, Alarm: RED, Fault: YELLOW) Measuring value display LCD display (Built in back light 2color) Output signal 4-20mA, Hart, RS-485-RTU Material Aluminum alloy Conduit connection NPT3/4 (adapter for other size) Mounting type 2" Pole mount, Wall mount, Option Operating temperature LEL:-40~70℃ Toxic:-20~50℃ Operating humidity ≤95%.RH (non-condensing) Dimensions 130(W) x 209(H) x 116(D)mm about 2.0kg Parameter control Magnetic bar or Non intrusive control with a IR Remote (calibration, maintenance) 가연성   구분 내용 Measuring gas Combustible Measuring method Catalytic or IR Measuring range 0~100% LEL Response time T90≤15S O2 & 독성   구분 내용 Measuring gas O2 Toxic Measuring method Electrochemical Measuring range 0-25%VOL Refer to Toxic Gas Measuring Range Response time T90≤30S VOCs   구분 내용 Measuring gas VOCs Measuring method PID or Semiconductor Measuring range Refer to Toxic Gas Measuring Range Response time T90≤30S

가스감지기

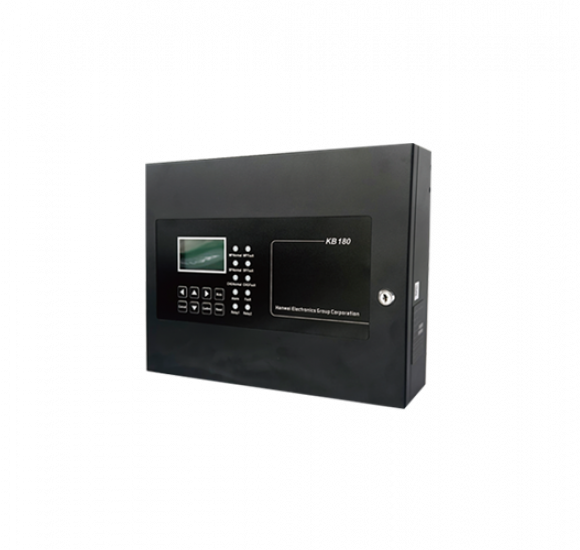

  KB180 제품특징 가스감지기 8CH 연결가능 (4-20mA) LCD 디스플레이 간편한 조작법 청각, 시각 경보 백업 배터리 내장 콤팩트한 사이즈의 월마운트 타입 제품사양 KB180 사양   Model KB180 Power supply Main:AC187V~AC253V / Backup: DC20V~DC27V Relay capacity ≤3A Consumption ≤10W (Gas detectors excluded) Working temp / humidity 0~40℃ / ≤95%RH Output voltage DC20V~DC28V Alarm method Audible (65dB to 100dB@1M), Visual Detector quality 8pcs of 4-20mA detectors Display & indication LCD screen and indicators Data uplode RS485 (Supports Modbus) Dimension 280(W) x 220(H) x 76(D)mm Relay output 2 dry relays (Max voltage AC220V) Weight About 4.5kg

가스감지기

가스감지기

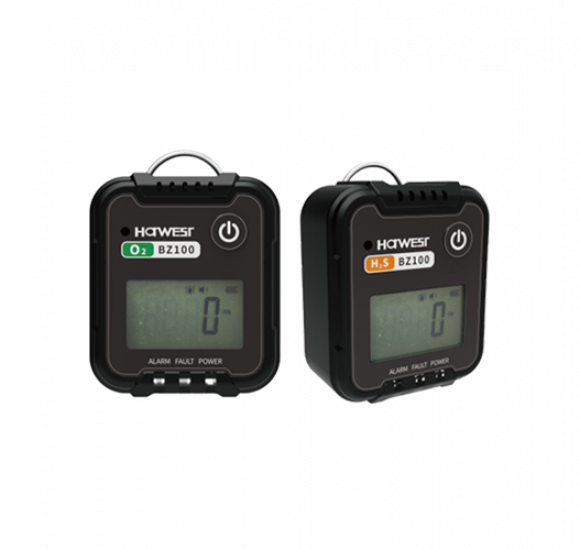

제품사양 BZ100 사양   Model BZ100 Measuring type Diffusion type Measuring method Electrochemical Measuring gas CO H2S O2 Measuring range 0-500PPM 0-100PPM 0-25%VOL Alarm Low:35PPM / High:70PPM Low:6PPM / High:12PPM Low:19.5%VOL / High:23.5%VOL Response time T90≤30s Alarm signal Audible, visual, vibrative Alarm sound 90dB@10cm Power source Lithium battery DC3.6V, 1200mAh Ingress protection IP66 Operating temperature -20~50℃ Operating humidity ≤95%.RH (non-condensing) Dimensions 61.5(W) x 52.8(H) x 27(D)mm about 85g CERTIFICATION KCs ATEX IECEx

가스감지기

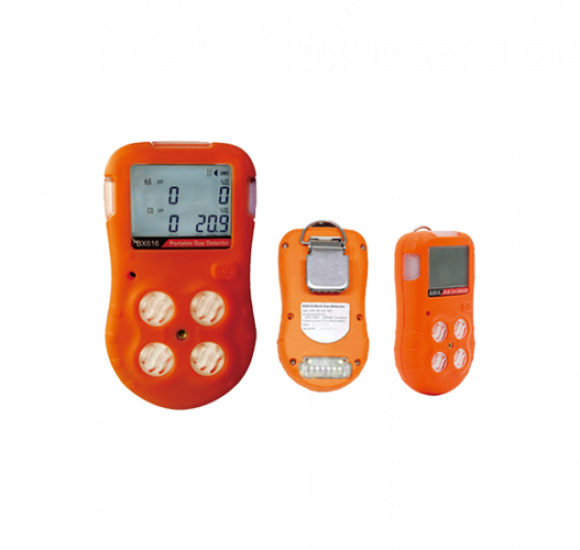

제품사양 BX616 사양   Model BX616 Measuring type Diffusion type Measuring method Electrochemical Catalytic Measuring gas O2 CO H2S Combustible Measuring range 0-25%VOL 0-500PPM 0-100PPM 0-100%LEL Alarm Low:19.5%VOL / High:23.5%VOL Low:16PPM / High:32PPM Low:6PPM / High:12PPM Low:20%LEL / High:50%LEL Response time T90≤30s Alarm signal Audible, visual, vibrative Alarm sound 85dB@1m Power source Lithium battery DC3.7V, 1800mAh Ingress protection IP66 Operating temperature LEL:-40~70℃ Toxic:-20~50℃ Operating humidity ≤95%.RH (non-condensing) Dimensions 120(W) x 68(H) x 30(D)mm about 220g CERTIFICATION ATEX IECEx 측정가스 목록 GAS RANGE TYPE BZ100 BX616 E410 BS01 BS02 BS03 WD2200 Combustible Gas 0-100%LEL Catalytic O O O O O O 0-100%LEL IR O O H2 0-1000PPM

가스감지기

가스감지기

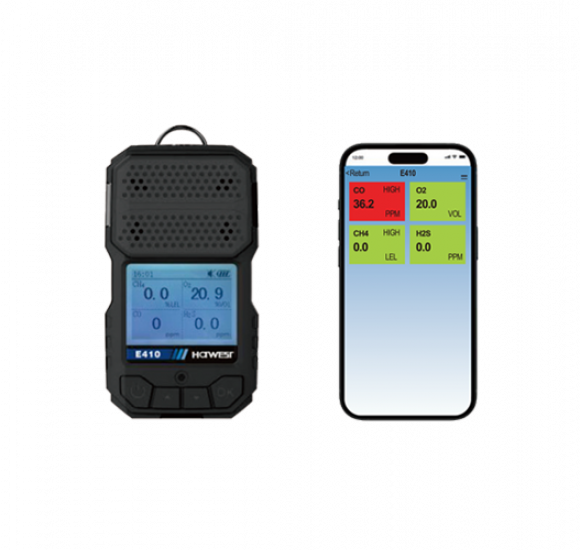

  제품사양 E410 사양   Model E410 Measuring type Diffusion type (E410) / Pumped type (E410P) Power source Lithium battery / E410≥14h, E410P≥12h Measuring method Electrochemical, IR, PID, etc. Ingress protection E410: IP67 / E410P: IP66 Measuring gas H2S, O2, CO ,SO2, CL2, ETO, HCL, NH3, CH4, VOC Operating temperature -20~55℃ Measuring range Please inquire separately for measurement ranges for each gas Operating humidity ≤95%.RH (non-condensing) Response time T90≤30s Dimensions 122.5(W) x 68(H) x 30.5(D)mm Alarm sound 90dB@1m Weight E410 204g / E410P 228g CERTIFICATION IECEx

가스감지기

  제품사양 GTQ-BS02 사양   Model GTQ-BS02 Operating voltage DC20V~28V Measuring type Diffusion type Accuracy ±3% / Full scale Operation mode display 3-LED (Power:GREEN, Alarm: RED, Fault: YELLOW) Measuring value display LED display Output signal Analog : 4-20mA, RS-485 Power BUS (Option) Material Aluminum alloy Conduit connection NPT3/4 (adapter for other size) Mounting type 2" Pole mount, Wall mount, Option Operating temperature LEL: -40~70℃ Toxic:-20~50℃ Operating humidity ≤95%.RH (non-condensing) Dimensions 130mm x 154mm x 83mm about 1.2kg Parameter control Non intrusive control with a IR Remote (calibration, maintenance) 가연성   구분 내용 Measuring gas Combustible Measuring method Catalytic Measuring range 0~100% LEL Response time T90≤15S O2 & 독성   구분 내용 Measuring gas O2 Toxic Measuring method Electrochemical Measuring range 0-25%VOL Refer to Toxic Gas Measuring Range Response time T90≤30S CERTIFICATION KCs ATEX IECEx 측정가스 목록 GAS

가스감지기

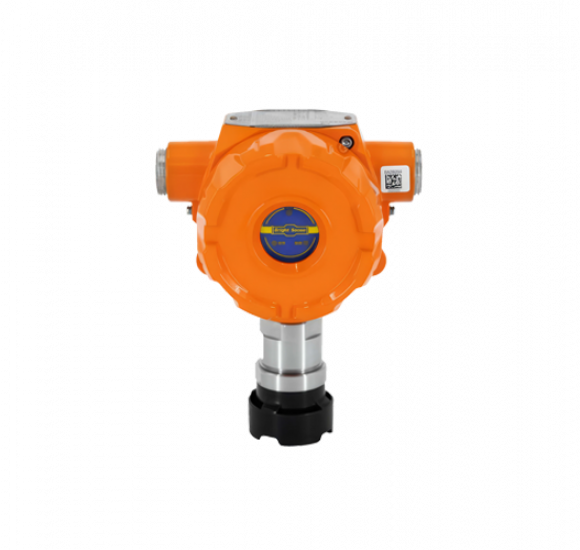

  제품사양 GTQ-BS01 사양   Model GTQ-BS01 Operating voltage DC20V~28V Measuring type Diffusion type Accuracy ±3% / Full scale Operation mode display 3-LED (Power:GREEN, Alarm: RED, Fault: YELLOW) Measuring value display Non Display Output signal Analog : 4-20mA, RS-485 Power BUS (Option) Material Aluminum alloy Conduit connection NPT3/4 (adapter for other size) Mounting type 2" Pole mount, Wall mount, Option Operating temperature LEL: -40~70℃ Operating humidity ≤95%.RH (non-condensing) Dimensions 130mm x 154mm x 83mm about 1.2kg Parameter control Non intrusive control with a IR Remote (calibration, maintenance) 가연성   구분 내용 Measuring gas Combustible Measuring method Catalytic Measuring range 0~100% LEL Response time T90≤15S CERTIFICATION IECEx ATEX KCs 측정가스 목록 GAS RANGE TYPE BZ100 BX616 E410 BS01 BS02 BS03 WD2200 Combustible Gas 0-100%LEL Catalytic O O O O O O 0-100%LEL IR
